3.5.2 綁定揭秘

前面一直在談?wù)撔诺馈⑿诺拦芾砥鳌⑿诺辣O(jiān)聽器、信道工廠和綁定元素，現在我們進入本章的主題——綁定。不過由于前面的鋪墊已經很足了，綁定本身反而沒有太多可大書特書的地方。如果從結構上給綁定下個定義，那么我的定義很簡單：“綁定是綁定元素的有序集合”。

綁定是綁定元素的有序集合

由于綁定的終極目標是實現對信道棧的創建，而對于一個信道棧來說，信道的構成和次序決定著該信道棧在最終消息通信中的特性與能力。綁定元素又決定著信道的創建，所以綁定對象本身的特性與能力由自身包含的所有綁定元素及這些綁定元素之間的先后次序決定。

當我們須要判斷某一個綁定類型是否支持某種特性的時候，只須查看該綁定是否具有與此特性相關的綁定元素。比如，我們要判斷某種綁定是否支持某種類型的傳輸協議，只須看看構成該綁定的傳輸綁定元素就可以了，WsHttpBinding的傳輸綁定元素是HttpTransportBindingElement，所以它只能支持基于HTTP或HTTPS的傳輸協議；如果須要確定某種類型的綁定是否支持事務的流轉，只須查看該綁定的綁定元素集合中是否包含TransactionFlowBindingElement就可以了。

在WCF中，所有的綁定都直接或間接繼承自抽象基類：System.ServiceModel.Channels. Binding，現在來簡單地分析一下這個基類。首先，Binding實現了接口IDefaultCommunication-Timeouts。4個默認的超時時限可以通過編程的方式顯式指定，也可以通過配置的方式進行設置。他們的默認值分別為：OpenTimeout和CloseTimeout為1分鐘，而SendTimeout和ReceiveTimeout為10分鐘。

        public abstract class Binding : IDefaultCommunicationTimeouts
        {
            //其他成員
            public TimeSpan OpenTimeout { get; set; }
            public TimeSpan CloseTimeout { get; set; }
            public TimeSpan SendTimeout { get; set; }
            public TimeSpan ReceiveTimeout { get; set; }
        }

對于Binding，最為重要的就是如何構建組成該綁定對象的所有綁定元素集合。基于綁定元素的創建，通過抽象方法CreateBindingElements實現，所有具體的綁定類型均須要實現該方法。

        public abstract class Binding : IDefaultCommunicationTimeouts
        {
            //其他成員
            public abstract BindingElementCollection CreateBindingElements();
        }

由于信道管理器棧創建相應的信道棧，而綁定創建信道管理器棧，因此在Binding中定義了一系列BuildChannelFactory<TChannel>和BuildChannelListener<TChannel>方法重載，用于創建信道工廠和信道監聽器。此外，和BindingElement一樣，CanBuildChannelFactory<TChannel>和CanBuildChannelListener<TChannel>用于檢測綁定對象創建信道工廠和信道監聽器的能力：

        public abstract class Binding : IDefaultCommunicationTimeouts
        {
            //其他成員
            public IChannelFactory<TChannel> BuildChannelFactory<TChannel>(params
              object[] parameters);
            public virtual IChannelFactory<TChannel> BuildChannelFactory<TChannel>
              (BindingParameterCollection parameters);
            public virtual IChannelListener<TChannel> BuildChannelListener<TChannel>
              (params object[] parameters) where TChannel : class, IChannel;
            public virtual IChannelListener<TChannel> BuildChannelListener<TChannel>
              (BindingParameterCollection parameters) where TChannel : class, IChannel;
            public virtual IChannelListener<TChannel> BuildChannelListener<TChannel>
              (Uri listenUriBaseAddress, params object[] parameters) where TChannel :
                class, IChannel;
            public virtual IChannelListener<TChannel> BuildChannelListener<TChannel>
              (Uri listenUriBaseAddress, BindingParameterCollection parameters) where
              TChannel : class, IChannel;
            public virtual IChannelListener<TChannel> BuildChannelListener<TChannel>
              (Uri listenUriBaseAddress, string listenUriRelativeAddress, params
              object[] parameters) where TChannel : class, IChannel;
            public virtual IChannelListener<TChannel> BuildChannelListener<TChannel>
              (Uri listenUriBaseAddress, string listenUriRelativeAddress,
              BindingParameterCollection parameters) where TChannel : class, IChannel;
            public virtual IChannelListener<TChannel> BuildChannelListener<TChannel>
              (Uri listenUriBaseAddress, string listenUriRelativeAddress,
              ListenUriMode listenUriMode, params object[] parameters) where TChannel :
              class, IChannel;
            public virtual IChannelListener<TChannel> BuildChannelListener<TChannel>
              (Uri listenUriBaseAddress, string listenUriRelativeAddress,
              ListenUriMode listenUriMode, BindingParameterCollection parameters)
              where TChannel : class, IChannel;
             public virtual bool CanBuildChannelFactory<TChannel>
              (BindingParameterCollection parameters);
             public bool CanBuildChannelFactory<TChannel>(params object[]parameters);
             public bool CanBuildChannelListener<TChannel>(params object[]parameters)
              where TChannel : class, IChannel;
             public virtual bool CanBuildChannelListener<TChannel>
              (BindingParameterCollection parameters) where TChannel : class, IChannel;
           }

案例演示：如何創建自定義綁定

在之前一系列的案例演示中，我們先后創建了自定義的信道、信道監聽器、信道工廠與綁定元素。這些對象最終只有通過具體的綁定對象才能應用到WCF的運行環境中，接下來，就演示如何通過自定義綁定應用創建綁定的元素。

1.自定義數據報綁定

為了簡單起見，對于我們自定義的綁定，僅僅包含3個必須的綁定元素：傳輸綁定元素和消息編碼綁定元素，外加自定義的綁定元素。對于傳輸，我們采用基于HTTP協議的HttpTransportBindingElement，而對應消息編碼，則采用基于文本編碼方式的TextMessageEncodingBindingElement。我們將自定義的綁定命名為SimpleDatagramBinding。

        namespace Artech.CustomChannels
        {
           public class SimpleDatagramBinding:Binding
           {
              private TransportBindingElement _transportBindingElement = new
               HttpTransportBindingElement();
              private MessageEncodingBindingElement _messageEncodingBindingElement
               = new TextMessageEncodingBindingElement();
              private SimpleDatagramBindingElement _SimpleDatagramBindingElement =
               new SimpleDatagramBindingElement();
              public override BindingElementCollection CreateBindingElements()
              {
                BindingElementCollection elemens=new BindingElementCollection();
                elemens.Add(this._SimpleDatagramBindingElement);
                elemens.Add(this._messageEncodingBindingElement);
                elemens.Add(this._transportBindingElement);
                return elemens.Clone();
              }
              public override string Scheme
              {
                get
                {
                   return this._transportBindingElement.Scheme;
                 }
                }
              }
         }

對于整個SimpleDatagramBinding的定義，僅僅重寫了CreateBindingElements方法和Scheme屬性。CreateBindingElements方法返回一個表示綁定元素集合的BindingElement-Collection對象，在該集合中，包含3種類型的綁定元素，從上到下的順序分別為：SimpleDatagramBindingElement、MessageEncodingBindingElement和HttpTransportBinding-Element。Scheme是只讀屬性的，它返回HttpTransportBindingElement的Scheme：http。

2. 在WCF應用中使用自定義綁定

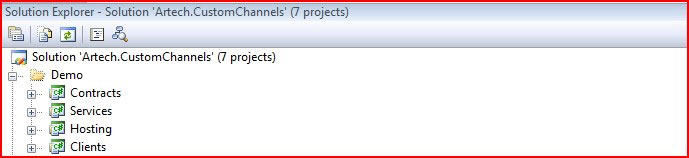

既然自定義綁定已經被創建出來了，我們先通過一個具體的WCF應用例子來使用創建的SimpleDatagramBinding。WCF應用照例采用典型的4層結構：Contracts、Services、Hosting和Clients（如圖3-15所示）。

先來介紹Contract和Service的定義，為了簡單起見，我們就定義一個DoSomething操作，服務與服務契約的定義如下所示。

        using System.ServiceModel;
        namespace Artech.CustomChannels.Contracts
        {
            [ServiceContract(Namespace="http://www.artech.com/")]
            public interface IService
            {
                [OperationContract]
                void DoSomething();
            }
        }

        using System;
        using Artech.CustomChannels.Contracts;
        namespace Artech.CustomChannels.Services{
            public class Service:IService
            {
                public void DoSomething()
                {
                    Console.WriteLine("Done...");
                }
            }
        }

在服務的寄宿程序中，通過調用ServiceHost對象的AddServiceEndpoint方法將終結點的綁定指定成自定義的綁定：SimpleDatagramBinding。

        using System;
        using System.ServiceModel;
        using Artech.CustomChannels.Services;
        using Artech.CustomChannels.Contracts;
        namespace Artech.CustomChannels.Hosting
        {
            class Program
            {
                static void Main(string[] args)
                {
                    using (ServiceHost host = new ServiceHost(typeof(Service)))
                    {
                        host.AddServiceEndpoint(typeof(IService), new
                          SimpleDatagramBinding(), "http://127.0.0.1:9999/service");
                        host.Open();
                        Console.Read();
                    }
                }
            }
        }

服務的客戶端實際將SimpleDatagramBinding對象和終結點地址作為參數創建ChannelFactory<IService>對象，最后通過該對象創建的服務代理進行服務的調用。為了演示信道棧與客戶端（服務代理）之間的關系，我們先后創建了兩個服務代理對象，代碼如下。

        using System;
        using System.ServiceModel;
        using System.ServiceModel.Channels;
        using Artech.CustomChannels.Contracts;
        namespace Artech.CustomChannels.Clients
        {
            class Program
            {
                static void Main(string[] args)
                {
                    EndpointAddress address = new EndpointAddress
                      ("http://127.0.0.1:9999/service");
                    using (ChannelFactory<IService> channelFactory = new ChannelFactory
                      <IService>(new SimpleDatagramBinding(), address))
                    {
                        //創建第一個服務代理
                        IService proxy = channelFactory.CreateChannel();
                        proxy.DoSomething();
                        proxy.DoSomething();
                        (proxy as ICommunicationObject).Close();
                        //創建第二個服務代理
                        proxy = channelFactory.CreateChannel();
                        proxy.DoSomething();
                        proxy.DoSomething();
                        (proxy as ICommunicationObject).Close();
                    }
                    Console.Read();
                }
            }
        }

本案例的目的不僅僅在于演示如何在WCF應用中使用自定義綁定，還想通過一個具體、鮮活的例子讓讀者認識到在進行服務寄宿、服務調用的過程中，綁定模型中的一系列對象：信道、信道監聽器、信道工廠及綁定元素之間是如何交互的。由于在自定義信道、信道監聽器、信道工廠及自定義綁定元素的大部分方法中都通過PrintHelper輸出了當前執行的方法名，所以可以根據輸出大體地看出整個執行流程。

下面是在服務成功寄宿后（尚無任何服務調用）服務端的輸出結果。大體上可以從中認識到服務寄宿過程中，服務端信道層是如何工作的。對于服務的每一個終結點（具有不同的監聽地址），WCF會遍歷綁定的所有綁定元素，并調用BuildChannelListener<TChannel>創建信道監聽器；信道監聽器開啟之后，調用BeginAcceptChannnel創建信道。信道開啟之后，信道監聽器監聽來自用戶的請求，并利用創建好的信道棧接收請求消息。

        SimpleDatagramBindingElement.BuildChannelListener<TChannel>
        SimpleDatagramChannelListener^1.SimpleDatagramChannelListener
        SimpleDatagramChannelListener^1.OnOpen
        SimpleDatagramChannelListener^1.OnBeginAcceptChannnel
        SimpleDatagramChannelListener^1.OnEndAcceptChannnel
        SimpeReplyChannel.SimpeReplyChannel
        SimpleDatagramChannelListener^1.OnBeginAcceptChannnel
        SimpeReplyChannel.OnOpen
        SimpeReplyChannel.BeginTryReceiveRequest

如果執行完客戶端的所有服務調用程序，客戶端將會具有如下的輸出。從中反映出的流程是這樣的：遍歷當前終結點綁定對象的所有綁定元素，調用BuildChannelFactory<TChannel>創建信道工廠（此時ChannelFactory<IService>被創建）；信道工廠正常開啟后，通過CreateChannel方法創建信道（此時服務代理通過ChannelFactory<IService>對象創建）；在通過信道進行第一次調用（或者顯式調用服務代理的Open方法）時，信道被開啟，被開啟的信道可以被多次用于服務調用。如果顯式關閉服務代理對象，基于它的客戶端信道棧也將被關閉。

        SimpleDatagramBindingElement.BuildChannelFactory<TChannel>
        SimpleDatagramChannelFactory^1.SimpleDatagramChannelFactory
        SimpleDatagramChannelFactory^1.OnOpen
        SimpleDatagramChannelFactory^1.OnCreateChannel
        SimpleRequestChannel.SimpleRequestChannel
        SimpleRequestChannel.OnOpen
        SimpleRequestChannel.Request
        SimpleRequestChannel.Request
        SimpleRequestChannel.OnClose
        SimpleDatagramChannelFactory^1.OnCreateChannel
        SimpleRequestChannel.SimpleRequestChannel
        SimpleRequestChannel.OnOpen
        SimpleRequestChannel.Request
        SimpleRequestChannel.Request
        SimpleRequestChannel.OnClose

當客戶端正常地執行完畢，服務端會多了如下一些額外的輸出。通過這些輸出可以看出，雖然客戶端程序先后創建了兩個服務代理進行服務調用，但是服務端用于接收請求消息的信道棧僅有一個。

        SimpeReplyChannel.EndTryReceiveRequest
        SimpeReplyChannel.BeginTryReceiveRequest
        Done…
        SimpeReplyChannel.EndTryReceiveRequest
        SimpeReplyChannel.BeginTryReceiveRequest
        Done…
        SimpeReplyChannel.EndTryReceiveRequest
        SimpeReplyChannel.BeginTryReceiveRequest
        Done…
        SimpeReplyChannel.EndTryReceiveRequest
        SimpeReplyChannel.BeginTryReceiveRequest
        Done

3.自定義會話綁定

接下來，我們創建一個自定義會話綁定，并應用之前創建的會話綁定元素SimpleSessionBindingElement。CreateBindingElements方法返回的集合中包含3種類型的綁定元素：

● SimpleSessionBindingElement：自定義會話綁定元素。

● BinaryMessageEncodingBindingElement：基于二進制編碼的消息編碼綁定元素。

● TcpTransportBindingElement：基于TCP的傳輸綁定元素。

        using System.ServiceModel.Channels;
        namespace Artech.CustomChannels
        {
            public class SimpleSessionBinding:Binding
            {
                private SimpleSessionBindingElement _simpleElement = new
                  SimpleSessionBindingElement();
                private MessageEncodingBindingElement _encodingElement = new
                  BinaryMessageEncodingBindingElement();
                private TransportBindingElement _transportBindingElement = new
                  TcpTransportBindingElement();
                public override BindingElementCollection CreateBindingElements()
                {
                    BindingElementCollection elemens=new BindingElementCollection();
                    elemens.Add(this._simpleElement);
                    elemens.Add(this._encodingElement);
                    elemens.Add(this._transportBindingElement);
                    return elemens.Clone();
                }
                public override string Scheme
                {
                    get
                    {
                        return this._transportBindingElement.Scheme;
                    }
                }
            }
        }

為了比較數據報綁定與會話綁定在消息交換過程不同的表現行為，我們將SimpleSessionBinding應用到上面的WCF應用中，僅僅替換到服務端和客戶端綁定即可。

        static void Main(string[] args)
        {
            using (ServiceHost host = new ServiceHost(typeof(Service)))
            {
                host.AddServiceEndpoint(typeof(IService), new SimpleSessionBinding(),
                  "net.tcp://127.0.0.1:9999/service");
                host.Open();
                Console.Read();
            }
        }

        static void Main(string[] args)
        {
            EndpointAddress address = new EndpointAddress
              ("net.tcp://127.0.0.1:9999/service");
            using (ChannelFactory<IService> channelFactory = new
              ChannelFactory<IService>(new SimpleSessionBinding(),address))
            {
                //......
            }
        }

在服務成功寄宿后，服務端輸出如下。這和數據報綁定的表現形式有所不同：數據報綁定在開始監聽的時候就已經通過信道監聽器創建了信道棧，而會話綁定在監聽的時候，信道棧還沒有被建立起來。

        SimpleSessionBindingElement.BuildChannelListener<TChannel>
        SimpleSessionChannelListener^1.SimpleSessionChannelListener
        SimpleSessionChannelListener^1.OnOpen
        SimpleSessionChannelListener^1.OnBeginAcceptChannel

在客戶服務調用程序正常執行后，客戶端會具有如下的輸出。這和前面例子中的輸出類似，不同的僅僅是請求信道通過Request方法向服務端發送請求和接收回復，雙工通信則通過調用Send和Receive發送和接收消息。

        SimpleSessionBindingElement.BuildChannelFactory<TChannel>
        SimpleSessionChannelFactory^1.SimpleSessionChannelFactory
        SimpleSessionChannelFactory^1.OnOpen
        SimpleSessionChannelFactory^1.OnCreateChannel
        SimpleDuplexSessionChannel.SimpleDuplexSessionChannel
        SimpleDuplexSessionChannel.OnOpen
        SimpleDuplexSessionChannel.Send
        SimpleDuplexSessionChannel.TryReceive
        SimpleDuplexSessionChannel.Send
        SimpleDuplexSessionChannel.TryReceive
        SimpleDuplexSessionChannel.OnClose
        SimpleSessionChannelFactory^1.OnCreateChannel
        SimpleDuplexSessionChannel.SimpleDuplexSessionChannel
        SimpleDuplexSessionChannel.OnOpen
        SimpleDuplexSessionChannel.Send
        SimpleDuplexSessionChannel.TryReceive
        SimpleDuplexSessionChannel.Send
        SimpleDuplexSessionChannel.TryReceive
        SimpleDuplexSessionChannel.OnClose

會話綁定不同于數據報信道的工作機制主要通過服務端的輸出體現，當服務調用程序正常運行時，服務端多出了如下一段輸出。仔細分析輸出結果，你會發現對于會話信道棧的創建發生在成功監聽到調用請求的時候。會話信道棧與具體的客戶端綁定，當關閉客戶端會話信道棧的時候，服務端的會話信道棧也會相應關閉。

        SimpleSessionChannelListener^1.OnEndAcceptChannel
        SimpleDuplexSessionChannel.SimpleDuplexSessionChannel
        SimpleSessionChannelListener^1.OnBeginAccesptChannel
        SimpleDuplexSessionChannel.OnOpen
        SimpleDuplexSessionChannel.BegingTryReceive
        SimpleDuplexSessionChannel.EndTryReceive
        Done...
        SimpleDuplexSessionChannel.Send
        SimpleDuplexSessionChannel.BegingTryReceive
        SimpleDuplexSessionChannel.EndTryReceive
        Done...
        SimpleDuplexSessionChannel.Send
        SimpleDuplexSessionChannel.BegingTryReceive
        SimpleDuplexSessionChannel.EndTryReceive
        SimpleDuplexSessionChannel.OnClose
        SimpleSessionChannelListener^1.OnEndAcceptChannel
        SimpleDuplexSessionChannel.SimpleDuplexSessionChannel
        SimpleSessionChannelListener^1.OnBeginAccesptChannel
        SimpleDuplexSessionChannel.OnOpen
        SimpleDuplexSessionChannel.BegingTryReceive
        SimpleDuplexSessionChannel.EndTryReceive
        Done...
        SimpleDuplexSessionChannel.Send
        SimpleDuplexSessionChannel.BegingTryReceive
        SimpleDuplexSessionChannel.EndTryReceive
        Done...
        SimpleDuplexSessionChannel.Send
        SimpleDuplexSessionChannel.BegingTryReceive
        SimpleDuplexSessionChannel.EndTryReceive
        SimpleDuplexSessionChannel.OnClose
