How to do it...

1. In Solution Explorer, double click on Resources.resx file in CSharpAnalyzers project to open the resource file in the resource editor.
2. Replace the existing resource strings for AnalyzerDescription, AnalyzerMessageFormat and AnalyzerTitle with new strings.

1. Replace the Initialize method implementation with the code from CSharpAnalyzers/CSharpAnalyzers/CSharpAnalyzers/DiagnosticAnalyzer.cs/ method named Initialize.



1. Add a private class CompilationAnalyzer from CSharpAnalyzers/CSharpAnalyzers/CSharpAnalyzers/DiagnosticAnalyzer.cs/ type named CompilationAnalyzer in your analyzer to perform the core method body analysis for a given method.
2. Click on Ctrl + F5 to start a new Visual Studio instance with the analyzer enabled.
3. In the new Visual Studio instance, enable full solution analysis for C# projects by following the steps here: https://msdn.microsoft.com/en-us/library/mt709421.aspx

1. In the new Visual Studio instance, create a new C# class library with the following code:

namespace MyNamespace
{
  public class InsecureMethodAttribute : System.Attribute { }

  public interface ISecureType { }

  public interface IInsecureInterface
  {
    [InsecureMethodAttribute]
    void F();
  }

  class MyInterfaceImpl1 : IInsecureInterface
  {
    public void F() {}
  }

  class MyInterfaceImpl2 : IInsecureInterface, ISecureType
  {
    public void F() {}
  }

  class MyInterfaceImpl3 : ISecureType
  {
    public void F() {}
  }
}

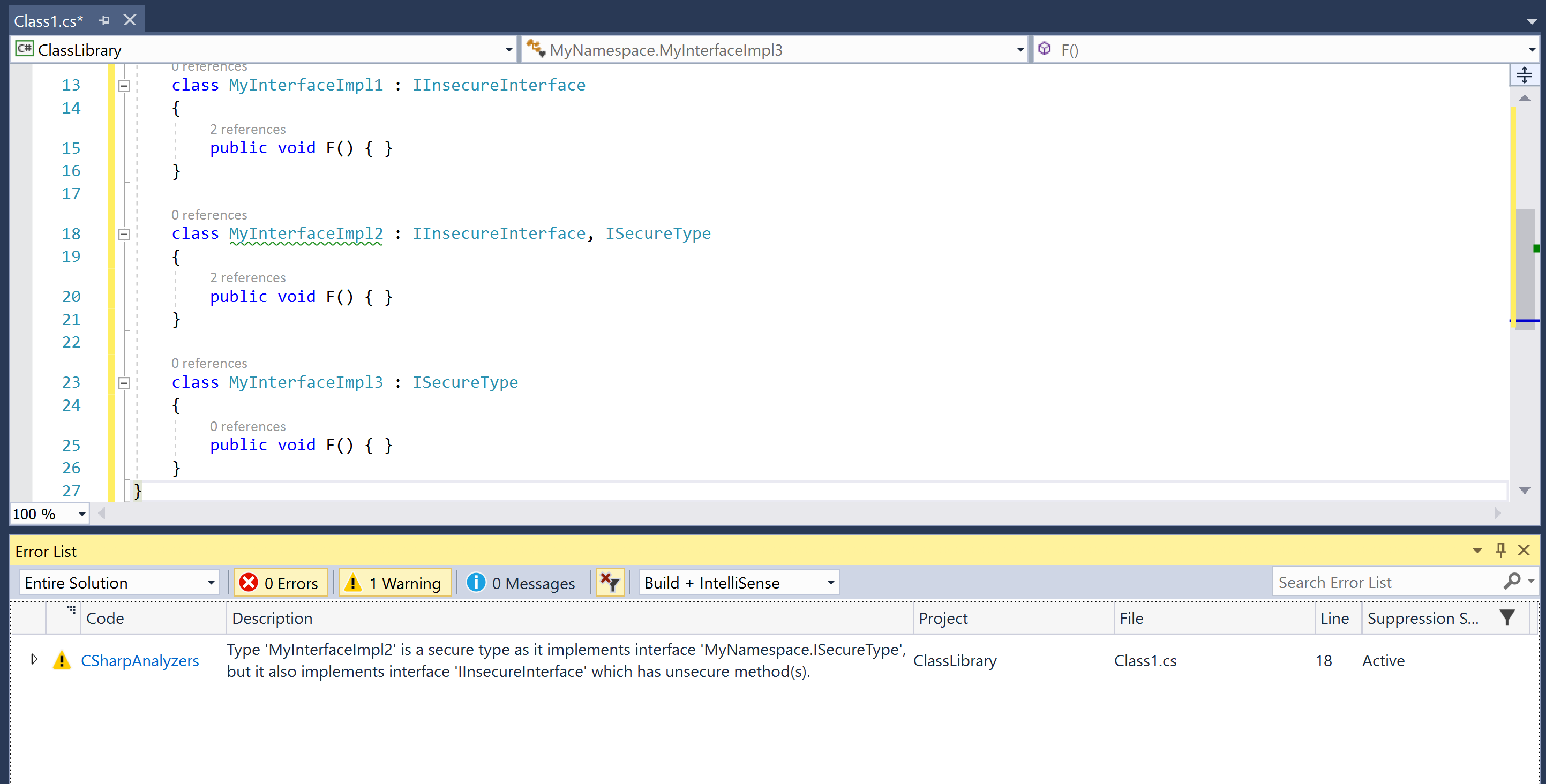

1. Verify the analyzer diagnostic is not reported for MyInterfaceImpl1 and MyInterfaceImpl3, but is reported for MyInterfaceImpl2:

1. Now, change MyInterfaceImpl2 so that it no longer implements IInsecureInterface and verify that the diagnostic is no longer reported.

class MyInterfaceImpl2 : ISecureType
{
  public void F() {}
}
