Data-driven styling

A useful technique when creating a custom user interface with Visualforce is to conditionally style important pieces of information to draw the user's attention to them as soon as a page is rendered.

Most Visualforce developers are familiar with using merge fields to provide sObject field values to output tags, or to decide if a section of a page should be rendered. In the tag shown next, the merge field, {!account.Name}, will be replaced with the contents of the Name field from the account sObject:

<apex:outputField value="{!account.Name}"/>

The merge fields can also contain formula operators and be used to dynamically style data when it is displayed.

In this recipe, we will display a table of campaign records and style the campaign cost in green if it was within-budget, or red if it was over-budget.

How to do it...

1. Navigate to the Visualforce setup page by clicking on Your Name|Setup|Develop|Visualforce Pages.
2. Click on the New button.
3. Enter ConditionalColour in the Label field.
4. Accept the default ConditionalColour that is automatically generated for the Name field.
5. Paste the contents of the ConditionalColour.page file from the code download into the Visualforce Markup area and click on the Save button.
6. Navigate to the Visualforce setup page by clicking on Your Name|Setup|Develop|Visualforce Pages.
7. Locate the entry for the ConditionalColour page and click on the Security link.
8. On the resulting page, select which profiles should have access and click on the Save button.

How it works...

Opening the following URL in your browser displays the ConditionalColour page: https://<instance>/apex/ConditionalColour. Here, <instance> is the Salesforce instance specific to your organization, for example, na6.salesforce.com.

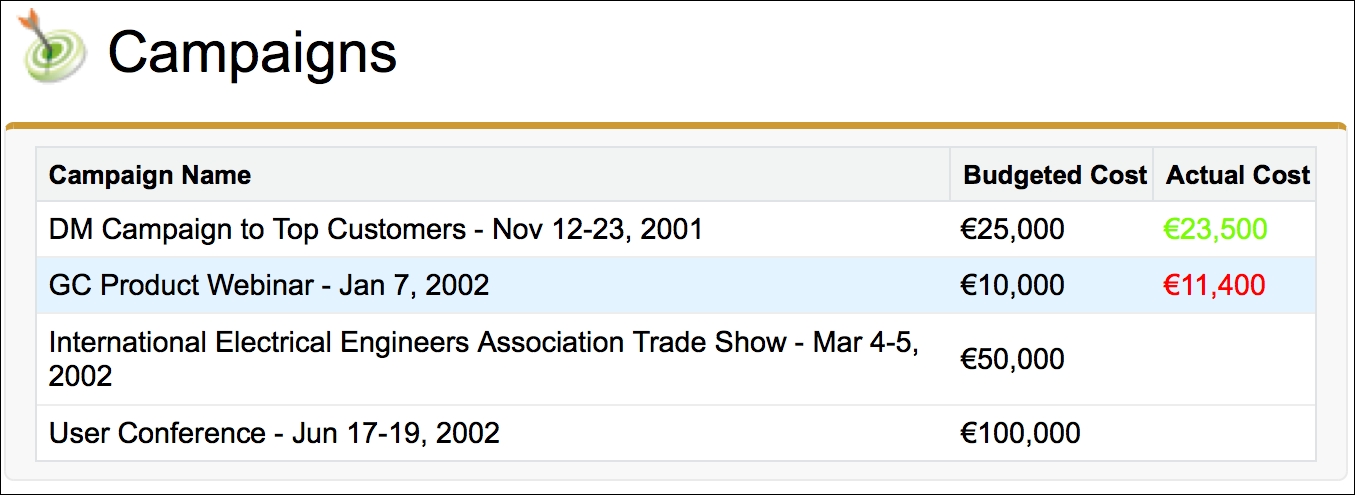

A list of campaigns is displayed, with the campaign cost rendered in red or green depending on whether it came in on- or over-budget:

The page makes use of a standard list controller by defining the recordSetVar attribute on the <apex:page /> standard component:

<apex:page StandardController="Campaign" recordSetVar="Campaigns">

Note

Standard list controllers allow a Visualforce page to manage a collection of records without the need for Apex code. The collection of records, by default, is from the last list view accessed by the user. Specifying the filterId property in the page allows the records from a particular list view to be used.

For more information on standard list controllers, see: https://developer.salesforce.com/docs/atlas.en-us.pages.meta/pages/pages_controller_sosc_about.htm.

Conditional styling is applied to the Actual Cost column by comparing the actual cost with the budgeted cost.

<apex:column style="color:
   {!IF(AND(NOT(ISNULL(campaign.ActualCost)),
   campaign.ActualCost<=campaign.BudgetedCost),
  "lawngreen", "red")}" value="{!campaign.ActualCost}"/>

See also

• The Data-driven decimal places recipe in Chapter 2, Custom Components shows how to format numeric values to a specified number of decimal places.
